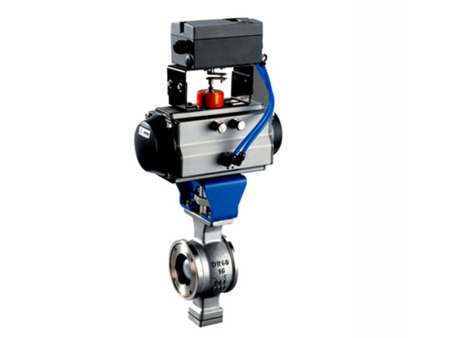

Pneumatic V-shaped ball valve is a rotary ball valve with a core seat made of metal or metal with PTFE sealing fit. It combines the control characteristics of ball valve and butterfly valve into one, and can be used as both a control regulating valve and a shut-off valve. The V-shaped cut on the ball core has a shear effect with the metal valve seat, which is particularly suitable for controlling high viscosity media containing fibers, solid particles, and slurries. The pulp used in the structural manufacturing paper industry is particularly superior. The valve has a large flow capacity, low pressure loss, and the medium will not deposit in the valve body cavity. The valve not only has an approximately proportional flow characteristic and a large adjustable range, with an adjustable ratio of 100:1, but also has the functions of regulation and reliable positioning.

Product Features

Pneumatic V-shaped ball valve is a type of ball valve. Its closing element is a hemispherical body with a V-shaped opening, which has a sharp blade. During the rotation of the ball, there is a wiping effect between the closing elements, which has a strong cutting force on the medium. The V-shaped opening of the ball and the valve seat flow channel form a fan-shaped area. During the rotation process, the cross-sectional area of the flow channel can be changed to adjust the medium. It is an angle rotation regulating valve with the same sealing performance as ordinary ball valves, making it have both regulating and switching functions. It is widely used in industrial process control systems and is matched with pneumatic or electric actuators.

1. Valve body integral structure: Both clamp type and flange type V-shaped ball valves have an integral side mounted structure with strong structural rigidity, which is not easy to cause deformation and leakage.

2. Upper and lower self-lubricating bearings: The valve body is equipped with upper and lower self-lubricating bearings, which have a large contact area with the valve stem, high load-bearing capacity, low friction coefficient, and reduce the torque of the valve.

3. The valve seat can be selected as metal hard seal or PTFE soft seal according to the needs of the medium and working conditions: the sealing surface of the metal hard seal valve seat is welded with hard alloy, and the spherical surface is hardened by hard chromium plating or spray welding, ion nitriding, etc., which enhances the service life and temperature resistance of the sealing surface; Soft sealed PTFE valve seats or reinforced PTFE valve seats have good sealing performance, corrosion resistance, and a wide range of applications.

4. Economic practicality: The valve body is lightweight, the valve stem torque is small, and the corresponding specifications for pneumatic or electric actuators are small. Compared with other types of regulating valves, it is high.

5. Wide applicability of the medium: Due to the shear force between the V-shaped opening and the valve seat, as well as the smooth and round flow channel in the valve cavity, the medium is not easily accumulated in the cavity. Therefore, in addition to liquid media, it is more suitable for system control with fiber and solid particle media.

6. Small flow control: By machining the special V-shaped opening of the small-diameter valve core, small Cv value control can be achieved.

Nominal diameter: DN25-DN500
Structural form: spherical;

Nominal pressure: 1.6Mpa~4.0Mpa

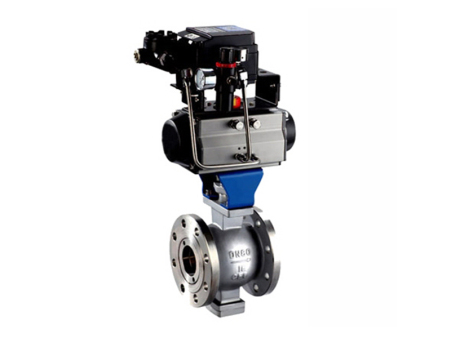

Connection methods: flange type, clamp type

Applicable temperature:- 20-232 ℃ -450 ℃
Drive modes: manual, worm gear, electric, pneumatic

Valve body material: cast steel, stainless steel
Manufacturing standards: national standard GB, German DIN, American API ANSI

Applicable media: steam, liquid, solid particles, viscous, easily crystallizable media;
