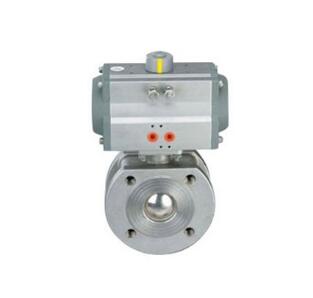

The Q671 pneumatic clamp ball valve AT series is a new generation of ultra short flange distance ball valves developed by introducing Italian technology for domestic design. The core channel shapes include rectangular, V-shaped, and O-shaped. This series of pneumatic ball valves has the characteristics of compact structure, small volume, light weight, and easy installation. Q671 ball valves can be widely used in petroleum, chemical, metallurgical, power station, light industry and other fields to automatically adjust or cut off oil, water, gas, pulp or fibrous fluids.

Dynamic Clamp Ball Valve AT Series

The Q671 pneumatic clamp ball valve AT series is a new generation of ultra short flange distance ball valves developed by introducing Italian technology for domestic design. The core channel shapes include rectangular, V-shaped, and O-shaped. This series of pneumatic ball valves has the characteristics of compact structure, small volume, light weight, and easy installation. Q671 ball valves can be widely used in petroleum, chemical, metallurgical, power station, light industry and other fields to automatically adjust or cut off oil, water, gas, pulp or fibrous fluids.

The Q671 ball valve is composed of a pneumatic dual piston gear rack actuator and an ultra short flange distance ball valve. The valve body is the same as that of the "1" electric ball valve. Pneumatic piston actuators are divided into two types: spring-loaded and springless. When the valve is required to be fully open or closed in case of a fault, a spring-loaded system (relying on the restoring tension of the spring to reset) should be installed. When the valve is required to maintain its position in case of a fault, a springless system should be installed. It is mainly composed of cylinder block, spring, piston, piston rod, front and rear cylinder heads, rack, output shaft and other components. For two switch valves, solenoid valves and travel switches are required; A comparative example regulating valve requires a locator.
