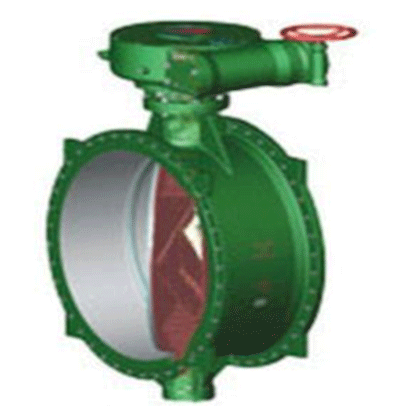

Working principle and purpose of the product:

The design of the anti sediment butterfly valve is aimed at the characteristics of high cement and sand content in the Yellow River (with a content of 80Kg/cubic meter and an annual average sediment concentration of 4.133Kg/cubic meter). Based on the summary of past experience and lessons, a new generation of sediment discharge butterfly valve has been developed through repeated testing and improvement. Nowadays, most cities are seriously short of water, and water diversion projects have been launched one after another. However, Rivers and Lakes contain sediment, and ordinary valves are impacted and corroded by sediment in the water diversion pipeline. In a short time (2~6 months), the sealing surface is seriously damaged and cannot work normally. This valve has made significant improvements in structural design, material selection, manufacturing process, and other aspects compared to conventional butterfly valves, enabling it to adapt to harsh working conditions. This valve is mainly used in water intake pipelines to achieve the functions of regulating flow rate, check and shut-off sealing. If this valve is equipped with a hydraulic device, it can be used as an ideal hydraulic control check butterfly valve to install a pump outlet for long pipelines.

Product Structure Features:

1. The streamlined valve body internal cavity structure design not only reduces flow resistance, but also reduces the wear of the valve body inner wall under sediment impact.

2. A new design concept, the valve seat ring adopts a special formula of rubber material, which has high resistance to mud and sand impact wear. Fundamentally changing the previous situation of constantly selecting new wear-resistant metal materials, which increased manufacturing costs but had unsatisfactory performance.

3. The shaft end anti sediment structure, which has been tested in practice, effectively protects valve shafts, bearings, packing and other components from sediment corrosion.

4. The new type of shaft sleeve structure design ensures that performance is not reduced while significantly reducing manufacturing costs. Smaller external dimensions and lighter overall weight.

5. The lubricated shaft sleeve structure design reduces the operating torque and makes the switch more flexible and labor-saving.

6. One valve is versatile and can be used with different driving devices to achieve different functions: when equipped with manual or electric devices, it can be used to adjust flow rate, pressure, or shut-off sealing; When equipped with a hydraulic drive device, it can be installed at the pump outlet to prevent and eliminate water hammer.

7. It can be installed horizontally or vertically.
