Working principle and purpose of the product:

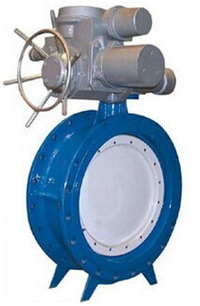

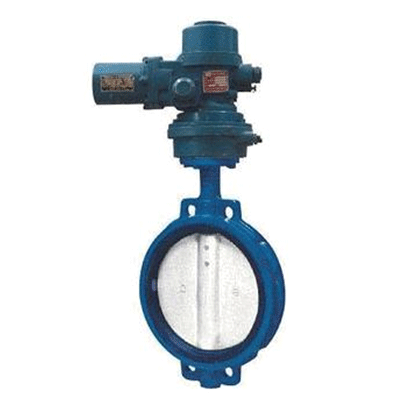

The electric multi-level soft seal butterfly valve with precision J-shaped elastic sealing ring and triple eccentric multi-level PTFE sealing structure is used in industrial pipelines such as metallurgy, power, petrochemicals, water supply and drainage, and municipal construction where the medium temperature is ≤ 150 ℃, for regulating flow and carrying fluids. The valve adopts a three eccentric structure, and the valve seat and disc sealing surface are made of different hardness and stainless steel, which has good corrosion resistance and long service life. The valve has a bi-directional sealing function and the product meets the national GB/T13927-92 valve pressure test standard.

Product Structure Features:

1. This valve adopts a three eccentric sealing structure, with almost no wear on the valve seat and butterfly plate, and has a sealing function that becomes tighter as viewed.

2. The sealing ring is made of polytetrafluoroethylene, which has the dual advantages of metal hard sealing and elastic sealing. It has excellent sealing performance in both low and high temperatures, corrosion resistance, and long service life.

3. The sealing surface of the disc plate is made of welded cobalt based hard alloy, which is wear-resistant and has a long service life

4. The large-sized butterfly plate adopts a frame structure with high strength, large overcurrent area, and low flow resistance.

5. This valve has a bidirectional sealing function, which is not limited by the flow direction of the medium or the spatial position during installation, and can be installed in any direction.

6. The drive device can be installed in multiple stations (rotated 90 ° or 180 °) for easy user use.
