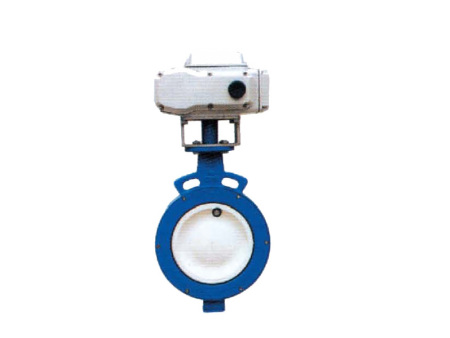

Electric single eccentric butterfly valve is a butterfly valve produced by our factory using foreign valve manufacturing technology and the principle of "floating seal". It solves the possibility of valve leakage and reduces the friction resistance and operating torque of the sealing valve seat. It can be widely used as a cut-off and regulating function for fluid pipelines in water supply and drainage, construction, air conditioning, sewage, petroleum, chemical, food, medicine, textile, hydropower and other systems.

Product Features

1. Floating valve seat can automatically align the sealing position of the butterfly plate, achieve good sealing effect, and reduce operating torque.

2. Adopting a single eccentric structure can reduce the wear of the valve seat during the switching process and improve its service life.

3. Spherical sealing surface ensures that even if the valve cannot be closed properly when closed, it can still seal the valve without water leakage.

4. Special pin design ensures a tight fit between the butterfly plate and the valve stem, and can be replaced.

5. The overall baking paint can effectively prevent rust and can be used in different media as long as the sealing valve seat material is replaced.

6. Lean material selection ensures that each component has high reliability.

Main specifications&nbsp

Pressure rating: 1. OM Pa, 1.6 M Pa

Valve body pressure: 1.5 MPa, 2.4 MPa

Sealing test: 1.1 M Pa, 1.7 6 Mpa

Working temperature: 0-80 ° C;

Applicable media: water, oil, gas
