Working principle and purpose of the product:
HH44X, HH44T, and HH44H micro resistance slow closing check valves are used in water supply and drainage pipelines. They are installed at the outlet of the water pump to prevent medium backflow and eliminate destructive water hammer. They can effectively reduce the water hammer pressure when the valve is closed, ensuring the safe operation of the pipeline network.
Suitable for pump outlets installed in industrial, agricultural, urban, high-rise residential and other water supply and drainage systems to prevent medium backflow, eliminate water hammer, and protect the safe operation of pumps and pipelines< Product Structure Features:
1. Equipped with a balance hammer device. When the valve disc rotates, the resistance to water flow is small, and the opening force is one-fifth of the original rotation type, making it an energy-saving product< br/>2、 The rear stroke of the valve disc is equipped with a damping device, and the damping time can be adjusted to prevent the occurrence of destructive water hammer< br/>3、 The valve disc has good sealing effect, vibration reduction and wear resistance, and long service life< br/>4、 Smooth operation with low noise.
Product performance parameters:
model | HH44T-10~25 | HH44X-10~25 | HH44H-10~25 |
Work pressure (MPa) | 1.0~2.5 | ||
Applicable temperature (℃) | ≤80 | ||
Applicable Medium | water | ||
Main component materials of the product:
Part name | Valve body and valve cover | Valve flap | valve shaft |
material | Grey cast iron, cast steel | Steel plate and rubber composite components | stainless steel |

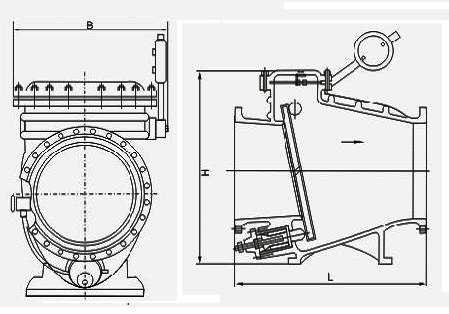

Main dimensions of the product:
Nominal Diameter | Main appearance and connection dimensions | ||
L | W | H | |
HH44T-10 HH44X-10 H44H-10C HH44T-16 HH44X-16 HH44H-16C HH44T-25 HH44X-25 HH44H-25 | |||
fifty | two hundred and thirty | two hundred and seventy | three hundred |
sixty-five | two hundred and ninety | two hundred and ninety | three hundred and twenty |
eighty | three hundred and ten | three hundred | three hundred and fifty-four |
one hundred | three hundred and fifty | three hundred and twenty | three hundred and fifty |
one hundred and twenty-five | four hundred | three hundred and forty | three hundred and eighty |
one hundred and fifty | four hundred and eighty | four hundred and ten | five hundred |
two hundred | five hundred | four hundred and fifty | five hundred and eighty |
two hundred and fifty | six hundred | five hundred and fifty | six hundred and seventy |
three hundred | seven hundred | five hundred and eighty | seven hundred and thirty |
three hundred and fifty | eight hundred | six hundred and thirty | eight hundred and twenty |
four hundred | nine hundred | seven hundred | nine hundred and twenty |
four hundred and fifty | one thousand | eight hundred | nine hundred and fifty |
five hundred | one thousand and one hundred | nine hundred | one thousand and one hundred |
six hundred | one thousand and three hundred | nine hundred and ninety | one thousand and two hundred |
seven hundred | one thousand and four hundred | one thousand one hundred and twenty | one thousand five hundred and fifty |
eight hundred | one thousand and five hundred | one thousand and three hundred | one thousand and seven hundred |
