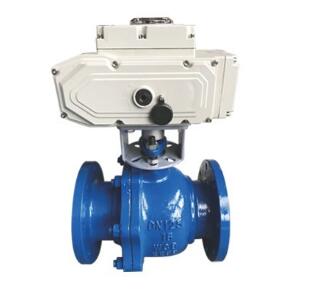

Electric fluorine lined ball valve

1、 Overview of electric fluorine lined ball valve

The electric fluorine lined ball valve consists of a YX series electric actuator and a fluorine lined ball valve. Due to the high-pressure injection molding process used in the valve cavity and ball body, it is lined with corrosion-resistant and anti-aging polytetrafluoroethylene (F46), which has reliable corrosion resistance and sealing performance. The actuator can provide sufficient torque to ensure reliable opening and closing of the valve, and is equipped with an automatic reset clutch that can automatically reset when power is lost. The built-in valve position feedback device can achieve the transmission and remote control of valve position signals.

2、 Characteristics of electric fluorine lined ball valve

1. Corrosion resistance: The inner cavity and body of the valve body are lined with F46 with a thickness of 2.5-3mm, which can resist acid, alkali, and strong corrosion.

2. Adopting soft sealed valve seat, with good sealing performance.

3. Small size, light weight, simple structure, easy installation and maintenance.

4. Low flow resistance, flow capacity

3、 Main component materials of electric fluorine lined ball valve

Type: Straight through two-piece cast ball valve

Nominal diameter: DN15～200mm

Nominal pressure: PN1.0、1.6MPa （ANSI 150Lb）

Connection form: Flange connection JB/T79-94 (ANSI16.5)

Material Science: ZG230-450 lining F46, ZG1Cr18Ni9Ti lining F46

Upper valve cover: cast together with valve body

Packing: Polytetrafluoroethylene

Medium temperature:- 20～+150℃

Valve core form: spherical valve core

Traffic characteristics: fast opening feature

Valve seat: polytetrafluoroethylene

Material Science: ZG230-450 lining F46, ZG1Cr18Ni9TI lining F46

Valve core angle: 90°
