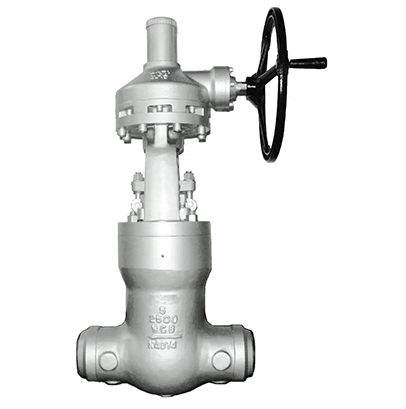

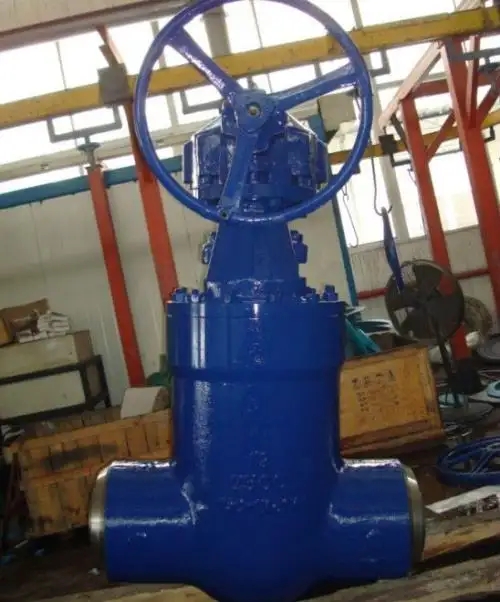

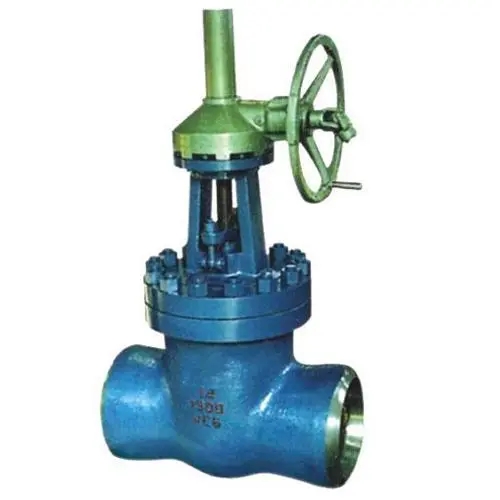

The connection between the high-pressure cut-off valve and the pipeline adopts a welded structure. The sealing surface is not easily worn or scratched, has good sealing performance, and has a long service life. Compact structure, good opening and closing performance, small height, and easy maintenance. Suitable for water, steam, and oil pipelines, it has the characteristics of high temperature resistance and high pressure resistance.

Nominal diameter: DN50〜DN600

Nominal pressure: PN1.6~16MPa

Applicable medium: Steam

Applicable temperature:- 10℃- 450℃

Drive mode: manual, pneumatic, electric

Main features and uses

1. The connection between the valve and the pipeline adopts a welded structure.

2. The sealing surface is not easily worn or scratched, has good sealing performance, and has a long service life.

3. Compact structure, good opening and closing performance, small height, and easy maintenance.

4. Suitable for water, steam, and oil pipelines, it has the characteristics of high temperature resistance and high pressure resistance.

Technical Standards for Manufacturing Acceptance

1. The technical conditions for manufacturing acceptance shall comply with the provisions of JB/T3595 or E101.

2. The length of the valve structure shall comply with the provisions of ANSI B16.10 or E101.

3. The welding groove of the valve body shall be in accordance with the provisions of ANSI B16.25 or the size provided by the user.
