Working principle and purpose of the product:

The insulation globe valve belongs to the forced sealing type valve, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface not to leak. When the medium enters valve six from below the valve disc, the resistance that the operating force needs to overcome is the frictional force between the valve stem and the packing, as well as the thrust generated by the pressure of the medium. The force required to close the valve is greater than the force required to open it, so the diameter of the valve stem should be larger, otherwise the valve stem will bend due to failure. In recent years, with the emergence of self sealing valves, the flow of medium in shut-off valves has shifted from above the valve disc into the valve chamber. Under the pressure of the medium, the force required to close the valve is small, while the force required to open the valve is large, resulting in a corresponding reduction in the diameter of the valve stem.

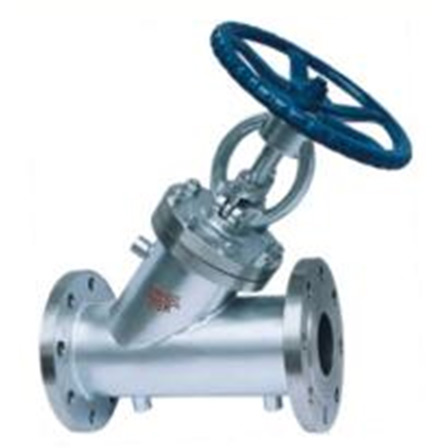

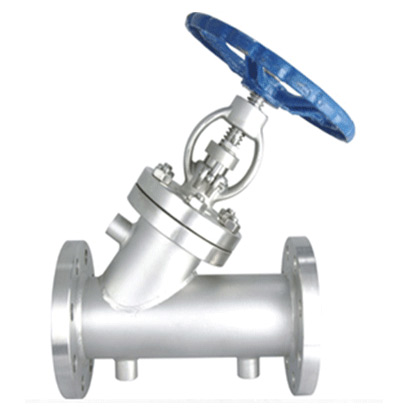

DC insulation globe valve is particularly suitable for pipelines in the chemical and fertilizer industries, and the inclusion of steam in the jacket can prevent the crystallization of the medium. Insulated globe valves are used in various systems such as petroleum, chemical, metallurgical, pharmaceutical, etc.

Product Structure Features:

1. The structure is simple, and manufacturing and maintenance are relatively convenient.

2. Small work schedule and short opening and closing time.

3. Good sealing performance, low friction between sealing surfaces, and long service life.

4. The fluid resistance is high, and a large amount of force is required for opening and closing.

5. Not suitable for media with particles, high viscosity, and easy coking.

6. Poor regulation performance.
