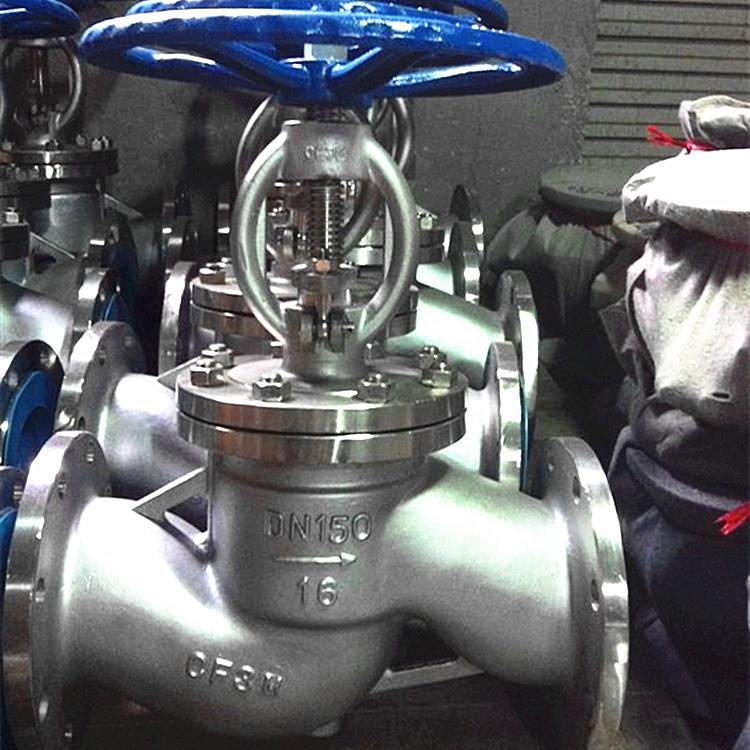

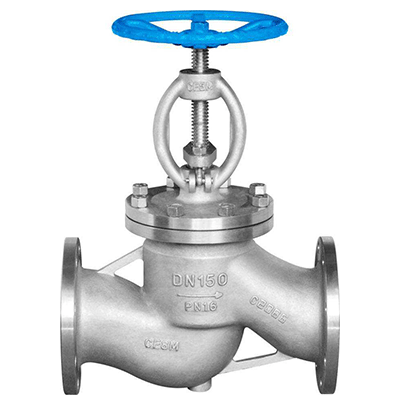

The opening and closing components of stainless steel globe valves are cylindrical valve discs with a flat or conical sealing surface. The valve disc moves linearly along the centerline of the fluid. The national standard globe valve is only suitable for fully open and fully closed, and is generally not used to regulate flow. When customized, it is allowed to be adjusted and throttled. Cut off or connect pipeline media on pipelines in various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries with a nominal pressure of 1.6MPa-16.0MPa and a working temperature of -29~550 ℃. The driving methods include manual, gear transmission, electric, pneumatic, etc.

Stainless steel globe valve product features:

1. Simple structure, easy to manufacture and maintain

2. Small work schedule and short opening and closing time

3. Good sealing performance, low friction between sealing surfaces, and long service life

Execution standards for J41W and J41H stainless steel globe valves:

Design and Manufacturing: GB12235

Structural length: GB12221

Flange size: GB9113 JB79

Pressure and temperature: GB9131

Experimental verification: GB/T13927 JB/T9092
