Working principle and purpose of the product:

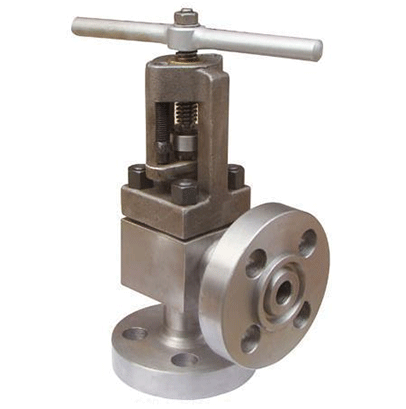

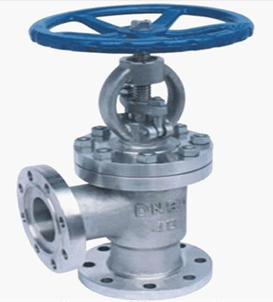

The opening and closing component of the angular globe valve is a plug shaped valve disc, with a flat or conical sealing surface. The valve disc moves linearly along the centerline of the fluid. Angle globe valve, also known as angle valve, has the movement form of valve stem, including lifting rod type (valve stem lifting, handwheel not lifting), and lifting rotating rod type (handwheel rotates and lifts together with valve stem, nut is set on valve body).

Angle type globe valve is a commonly used shut-off valve, mainly used to connect or cut off the medium in the pipeline, and is generally not used to regulate the flow rate. Globe valve products are suitable for a wide range of pressure and temperature, but are generally used for medium and small diameter pipelines, suitable for media such as steam, oil, water, etc. with a temperature of ≤ 425 ℃.

Product Structure Features:

In a corner globe valve, the fluid only needs to change direction once, so that the pressure drop through this valve is smaller than that of a conventional structure globe valve.

1. The structure is simple, and manufacturing and maintenance are relatively convenient.

2. Small work schedule and short opening and closing time.

3. Good sealing performance, low friction between sealing surfaces, and long service life.

4. The structural forms of the globe valve body include straight through, straight through, and right angle. Straight through structures are common, but they have high fluid resistance. Direct flow fluid has low resistance and is commonly used for fluids containing solid particles or high viscosity. Right angle valve bodies are often forged and suitable for globe valves with smaller diameters and higher pressures.

5. The friction force of the sealing surface during the opening and closing process is smaller than that of the gate valve, and it is wear-resistant.

6. Usually there is only one sealing surface, with good manufacturing process and easy maintenance.
