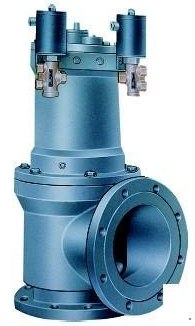

Hydraulic angle globe valve is a type of hydraulic angle globe valve used for industrial pipeline drainage. It includes a valve body, a valve disc, a hydraulic cylinder, and a piston. The inlet and outlet on the valve body are designed to be at right angles to each other. The valve body has a hydraulic cylinder, and the valve disc inside the valve body moves upward or downward to open or close the valve. Make the impurities in the sewage not scale in the valve body cavity, and achieve good drainage effect. This utility model has a compact structure, good sealing performance, flexible valve opening and closing, and strong practicality.

This series of products consists of two main parts: hydraulic cylinder and right angle globe valve. The hydraulic cylinder drives the valve plate to rise and fall, opening or closing the valve body channel to achieve fluid flow. The piston seal of the hydraulic cylinder is an L-shaped leather bowl, which has good sealing performance and is durable. The leather bowl is made of buffalo leather and has a lifespan of over two years. Users have reported that it has not been replaced for up to 4-5 years after use. The valve plate and valve body are sealed with a conical soft seal, which facilitates the flow of dirt when opened and prevents it from remaining. After closing, seal well without leakage.
