Working principle and purpose of the product:

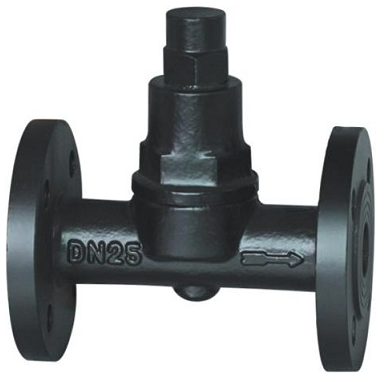

The bimetallic strip drain valve is driven by a bimetallic strip temperature sensing element to open and close the valve core. When the device is just started, low-temperature condensed water appears in the pipeline, and the bimetallic strip is flat. The valve core is in the open position under the elastic force of the spring. As the temperature of the condensed water gradually increases, the bimetallic sensing element begins to bend and deform, pushing the valve core towards the closed position. Before the condensate reaches saturation temperature, the drain valve is completely closed. There is always high-temperature condensed water in front of the valve, with no steam leakage and good energy-saving effect.

Product Structure Features:

① The bimetallic strip drain valve adopts bimetallic strips, which can be used without adjusting the pressure range.

② Sensitive thermal induction, continuous drainage, no noise, strong corrosion resistance.

③ Small in size, easy to install, and can be installed at any angle. Unique structure, excellent performance, large drainage capacity, adjustable steam leakage temperature, with a supercooling degree of around 2 ℃, which may eliminate a large amount of cold air and other non condensable substances, and will not cause steam blockage. Replaceable internal components, easy to maintain and adjust.
