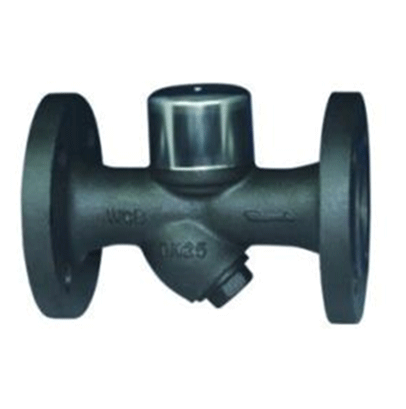

Working principle and purpose of the product:

If there is no condensed water generated on the superheated steam pipeline, the drain valve will not open, and the working quality is high. The valve body is made of alloy steel and the valve core is made of hard alloy. The high temperature allowable temperature of this valve is 550 ℃, which is durable and has a long service life. It is a high-pressure, high-temperature superheated steam trap. The disc type steam trap is based on the Bernoulli thermodynamic principle, utilizing the different thermodynamic characteristics of steam and condensed water to cause changes in kinetic energy and potential dynamic static pressure. Make the pressure difference between the upper and lower parts of the actuator valve plate change, and start the valve plate to open and close, thereby achieving the purpose of blocking steam and draining water.

Product Structure Features:

1. Small in size, lightweight, and not limited by installation location.

2. All materials are made of stainless steel, which is durable and corrosion-resistant. Not afraid of freezing outdoors, able to withstand water hammer and overheating.

3. The subcooling degree is 8 ℃, the steam leakage rate is less than 3% of the actual displacement, and the back pressure is 50%.

4. The structure is simple and easy to install and maintain.
