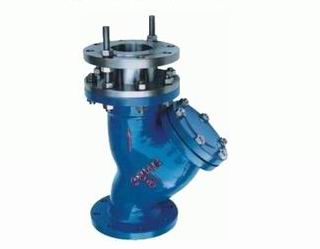

The Y-shaped filter is combined with an expansion joint, which has strong anti pollution properties, convenient discharge, large flow area, low pressure loss, simple structure, and small volume. The filter mesh material is all stainless steel, with strong corrosion resistance and long service life. The Y-shaped telescopic filter also has the characteristics of adjustable installation length and easy installation and removal. The number of filters can be set as needed, usually ranging from 18 to 30 mesh for water, 40 to 100 mesh for steam, and 100 to 180 mesh for oil.

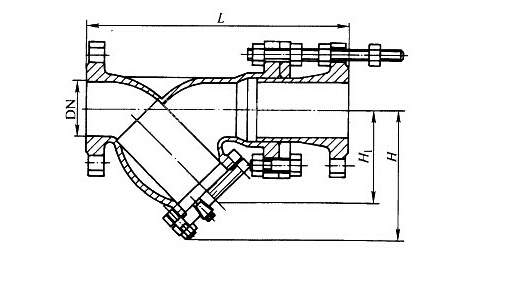

Schematic diagram of product appearance and structural dimensions
